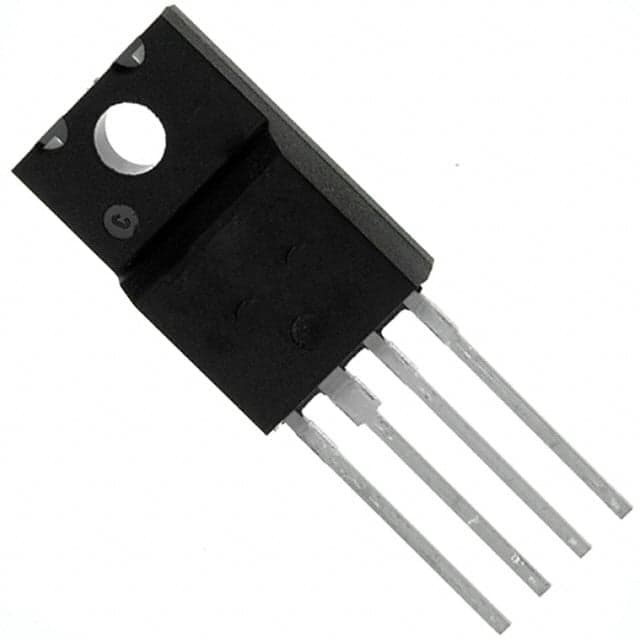

NJM2397F — Power Management

NJM2397F

Nisshinbo Micro Devices Inc. · Obsolete

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-220F-4

Output

1.5A

Vout

1.5V

Vin Max

35V

Temp

-40°C ~ 85°C

Trusted by engineering teams in

Aerospace
Defense
Industrial
Telecom

This part is just a click away

Part Number

Quantity

Email

Your Name

Phone Number

We respond within 1 business day.

Technical specs

Full parametrics

Output & Regulation

10 params

Output Type: Adjustable
Number of Regulators: 1
Output Configuration: Positive
Voltage - Output (Min/Fixed): 1.5V
Voltage - Output (Max): 20V
Voltage - Input (Max): 35V
Current - Output: 1.5A
Current - Quiescent (Iq): 5 mA
PSRR: 55dB (120Hz)
Protection Features: Over Current, Over Temperature, Over Voltage

Electrical & Package

1 param

Operating Temperature: -40°C ~ 85°C

Compliance & Lifecycle

1 param

Lifecycle Status: Obsolete

Additional Specifications

1 param

Voltage Dropout (Max): 0.5V @ 500mA
