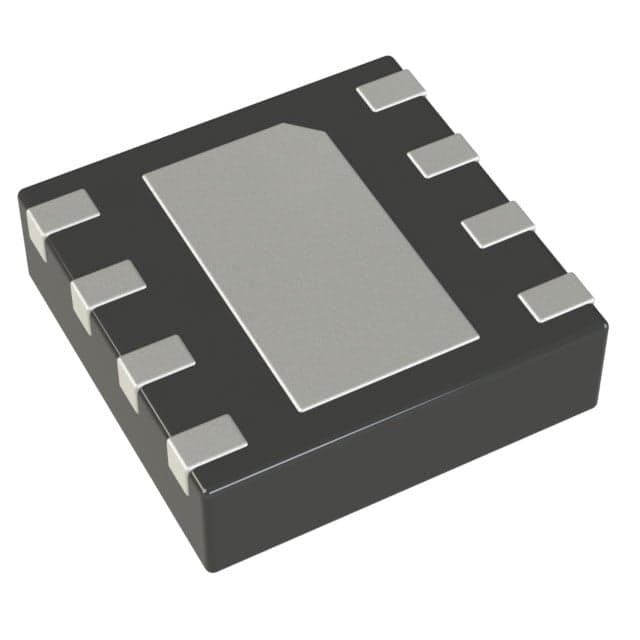

ISL9000AIRNNZ — Power Management

ISL9000AIRNNZ

Renesas Electronics · Obsolete

Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA 10-DFN (3x3)

Output

300mA, 300mA

Vout

3.3V, 3.3V

Vin Max

6.5V

Temp

-40°C ~ 85°C

Trusted by engineering teams in

Aerospace
Defense
Industrial
Telecom

This part is just a click away

Part Number

Quantity

Email

Your Name

Phone Number

We respond within 1 business day.

Technical specs

Full parametrics

Output & Regulation

8 params

Output Type: Fixed
Number of Regulators: 2
Output Configuration: Positive
Voltage - Output (Min/Fixed): 3.3V, 3.3V
Voltage - Input (Max): 6.5V
Current - Output: 300mA, 300mA
Current - Quiescent (Iq): 32 µA
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)

Electrical & Package

2 params

Current - Supply (Max): 52 µA
Operating Temperature: -40°C ~ 85°C

Compliance & Lifecycle

1 param

Lifecycle Status: Obsolete

Additional Specifications

2 params

Control Features: Enable, Power On Reset
Voltage Dropout (Max): 0.325V @ 300mA, 0.325V @ 300mA
